Spherical Bearing GEH530HC - *GEP530FS - 530 x 750 x 355 x 375mm
Quickly to:
Product description
FAQ
Specifications
Pros and cons
  • Alternative for Schaeffler INA GEP530FS

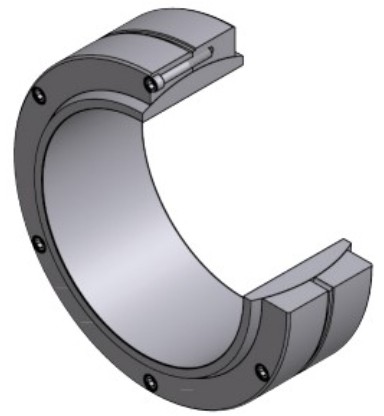

  • Outer ring of carbon steel, radially split twice, held together with screws, with sliding surface of PTFE-composite material
  • Innering of bearing steel hardened. Sliding surface treated with chromium plating

Spherical Bearing GEH530HC - *GEP530FS - 530 x 750 x 355 x 375mm

  • Article number: GEH530HC - GEP530FS
  • EAN-code:
  • Brand: NexaParts
local_shipping Shipped in 5 - 7 - Day(s)
Choose d (bearing bore)
100 mm
110 mm
120 mm
140 mm
160 mm
180 mm
200 mm
220 mm
240 mm
260 mm
280 mm
300 mm
320 mm
340 mm
360 mm
380 mm
400 mm
420 mm
440 mm
460 mm
480 mm
500 mm
530 mm
560 mm
600 mm
630 mm
Choose d (bearing bore)
100 mm
110 mm
120 mm
140 mm
160 mm
180 mm
200 mm
220 mm
240 mm
260 mm
280 mm
300 mm
320 mm
340 mm
360 mm
380 mm
400 mm
420 mm
440 mm
460 mm
480 mm
500 mm
530 mm
560 mm
600 mm
630 mm
Delivery time and price unknown. Request a quote for price and delivery time.
Pros and cons
  • Alternative for Schaeffler INA GEP530FS
  • Outer ring of carbon steel, radially split twice, held together with screws, with sliding surface of PTFE-composite material
  • Innering of bearing steel hardened. Sliding surface treated with chromium plating
Specifications
Article number GEH530HC - GEP530FS
B (Inner ring width)375 mm
Basic load ratings dynamic21500 kN
Basic load ratings statisch38500 kN
C (Width of outer ring)355 mm
CN Radial internal clearance0,145 - 0,610 mm
ColorMetaal
d (Bearing bore)530 mm
D (Outer diameter outer ring)750 mm
gelijk aan aGEH..HC
gelijk aan bGEP..FS
Maintenance requiredremove
MaterialKunststof
ModelGewrichtslager radiaal onderhoudsvrij
Model Description100-630mm
NormDIN ISO 12 240-1 H
SealsNo
Temperatur range-50°C up to +150°C
Tilting angle2 α° ≈
Dimensions530 x 750 x 355 x 375 mm
Dimensions and weight
Weight585.00 Kg
Dimension530 x 750 x 355 x 375 mm
Also found under
Radial Spherical Plain Bearings
download Download/print specifications PDF
Product description
Spherical Bearing GEH530HC - *GEP530FS - 530 x 750 x 355 x 375mm
De GEH530HC - GEP530FS - 530 x 750 x 355 x 375 mm is een onderhoudsvrij gewrichtslager.Dit lager is een zeer geschikt alternatief voor Schaeffler INA GEP530FS. Bent u op zoek naar een INA lager? Neem dan contact op met ons, want deze kunnen wij ook levere.
Delivery time and price unknown. Request a quote for price and delivery time.
