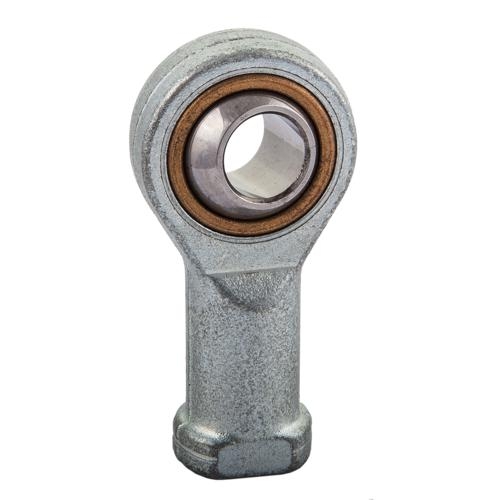

| Article number | SIKP6C - SGS-M6 |
| Color | Metaal |
| Material | ST 52-3 Tinted |
| Model | Stangkop onderhoudsvrij |
| B (Inner ring width) | 9 mm |
| Basic load ratings dynamic | 7.2 kN |
| Basic load ratings statisch | 9.3 kN |
| C1 max (Rod end width) | 6.8 mm |
| CN Radial internal clearance | 0,008 - 0,032 mm |
| d (Bearing bore) | 6 mm |
| d2 max (Rod end diameter) | 20 mm |
| h (Shank length) | 30 mm |
| L3 min (Thread length) | 12 mm |
| Maintenance Nippel | No |
| Maintenance required | No |
| Norm | DIN ISO 12 240-4-series K, Form F |
| Thread size | M6 |
| Tilting angle | 13 α° ≈ |
| Total height Rod end (L, L2, L4) | 40 |
| Dimensions and weight | |
| Weight | 0.03 Kg |
