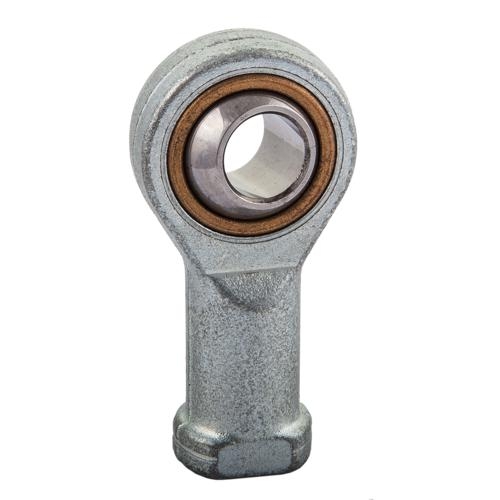

Rod End SIKP5C / SGS-M5 - Bore 5MM x M4 - BSP/F

  • Article number: 1821
  • EAN-code: 6096001768784
  • Brand: NexaParts
local_shipping Shipped in 5 - 7 - Day(s)
€ 7,62 per piece(s) In. VAT
€ 6,30 Ex. VAT
piece(s)
€ 7,62 per piece(s) In. VAT
€ 6,30 Ex. VAT
piece(s)
check 25 years of experience
check Customer rating 9/10
iDeal
paypal
mrCash
creditCard
Pros and cons
  • Maintenance Free
  • DIN ISO 12 240-4-Series K, Form F
  • Sliding Surface: Steel/PTFE
Specifications
Delivery timeShipped in 5 - 7 - Day(s)
Article number SIKP5C - SGS-M5
EAN 6096001768784
ColorMetaal
MaterialST 52-3 Tinted
ModelStangkop onderhoudsvrij
B (Inner ring width)8 mm
Basic load ratings dynamic6 kN
Basic load ratings statisch7.5 kN
C1 max (Rod end width)6 mm
CN Radial internal clearance0,008 - 0,032 mm
d (Bearing bore)5 mm
d2 max (Rod end diameter)18 mm
h (Shank length)27 mm
L3 min (Thread length)10 mm
Maintenance NippelNo
Maintenance requiredNo
NormDIN ISO 12 240-4-series K, Form F
Thread sizeM4
Tilting angle13 α° ≈
Total height Rod end (L, L2, L4)36
Dimensions and weight
Weight0.02 Kg
Also found under
Rod Ends | Rod Ends Screwing
download Download/print specifications PDF
Product description
Rod End SIKP5C / SGS-M5 - Bore 5MM x M4 - BSP/F
Stangkop SIKP5C - GIKPR5PW - GIPFR5PW - SIKB5F/VZ019 - SGS-M.. - Gat 5MM xm4 - Inwendig schroefdraad
