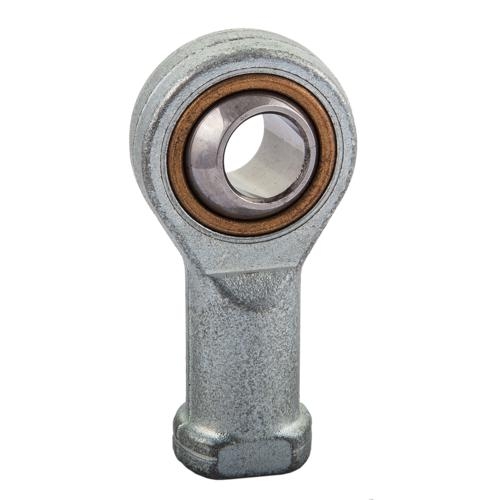

Rod End SIKP30C / SGS-M30 - Bore 30MM x M30x2 - BSP/F

  • Article number: SIKP30C - SGS-M30
  • EAN-code:
  • Brand: NexaParts
local_shipping
Delivery time unknown.
Delivery time and price unknown. Request a quote for price and delivery time.
Pros and cons
  • Especially designed for Pneumatic Cylinders
  • Incl Counternut DIN443
  • Maintenance Free
  • DIN ISO 12 240-4-Series K, Form F
  • Sliding Surface: Steel/PTFE
Specifications
Article number SIKP30C - SGS-M30
ColorMetaal
MaterialST 52-3 Tinted
ModelStangkop onderhoudsvrij
B (Inner ring width)37 mm
Basic load ratings dynamic81 kN
Basic load ratings statisch168.4 kN
C1 max (Rod end width)25 mm
CN Radial internal clearance0,010 - 0,040 mm
d (Bearing bore)30 mm
d2 max (Rod end diameter)70 mm
h (Shank length)110 mm
L3 min (Thread length)51 mm
Maintenance NippelNo
Maintenance requiredNo
NormDIN ISO 12 240-4-series K, Form F
Thread sizeM27x2
Tilting angle15 α° ≈
Total height Rod end (L, L2, L4)145
Dimensions and weight
Weight1.40 Kg
Also found under
Rod Ends | Rod Ends Screwing
download Download/print specifications PDF
Product description
Rod End SIKP30C / SGS-M30 - Bore 30MM x M30x2 - BSP/F
Stangkop SIKP30C - GIKPR30PW - GIPFR30PW - SIKB30F/VZ019 - SGS-M.. - Gat 30MM xm30x2 - Inwendig schroefdraad
Delivery time and price unknown. Request a quote for price and delivery time.
