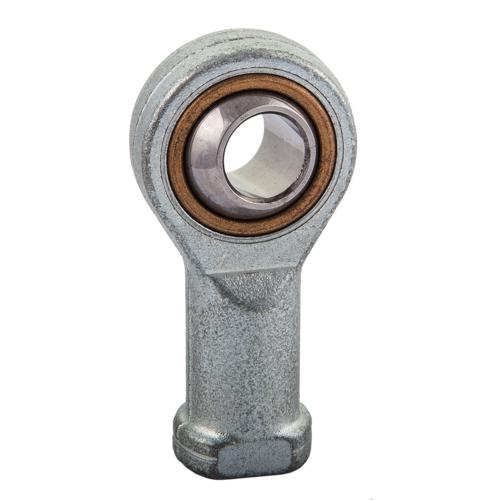

Rod End SIKP12C / SGS-M12 - Bore 12MM x M12x1,25 - BSP/F

  • Article number: SIKP12C - SGS-M12
  • EAN-code:
  • Brand: NexaParts
local_shipping
Delivery time unknown.
Delivery time and price unknown. Request a quote for price and delivery time.
Pros and cons
  • Especially designed for Pneumatic Cylinders
  • Incl Counternut DIN440
  • Maintenance Free
  • DIN ISO 12 240-4-Series K, Form F
  • Sliding Surface: Steel/PTFE
Specifications
Article number SIKP12C - SGS-M12
ColorMetaal
MaterialST 52-3 Tinted
ModelStangkop onderhoudsvrij
B (Inner ring width)16 mm
Basic load ratings dynamic17 kN
Basic load ratings statisch32 kN
C1 max (Rod end width)12 mm
CN Radial internal clearance0,010 - 0,040 mm
d (Bearing bore)12 mm
d2 max (Rod end diameter)32 mm
h (Shank length)50 mm
L3 min (Thread length)22 mm
Maintenance NippelNo
Maintenance requiredNo
NormDIN ISO 12 240-4-series K, Form F
Thread sizeM12x1,25
Tilting angle13 α° ≈
Total height Rod end (L, L2, L4)66
Dimensions and weight
Weight0.14 Kg
Also found under
Rod Ends | Rod Ends Screwing
download Download/print specifications PDF
Product description
Rod End SIKP12C / SGS-M12 - Bore 12MM x M12x1,25 - BSP/F
Stangkop SIKP12C - GIKPR12PW - GIPFR12PW - SIKB12F/VZ019 - SGS-M.. - Gat 12MM xm12x1,25 - Inwendig schroefdraad
Delivery time and price unknown. Request a quote for price and delivery time.
