| Delivery time | Shipped in 5 - 7 - Day(s) |

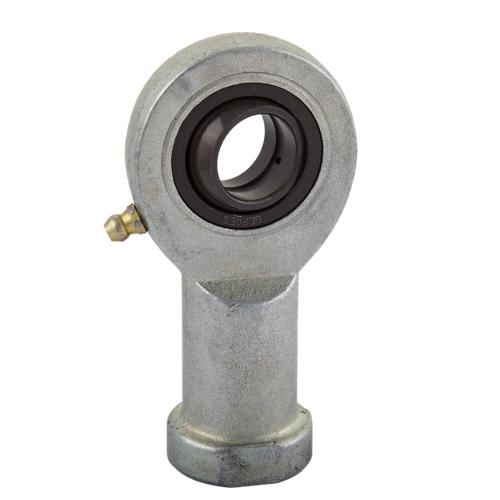

| Article number | SI15ES-2RS - GIR5DO-2RS - SIA5ES-2RS |
| EAN | 6096003221218 |
| Color | Metaal |
| Material | C45 Tinted |
| Model | Stangkop onderhoudsplichtig |
| B (Inner ring width) | 12 mm |
| Basic load ratings dynamic | 16 kN |
| Basic load ratings statisch | 36 kN |
| C1 max (Rod end width) | 10,5 mm |
| CN Radial internal clearance | 0,030 - 0,082 mm |
| d (Bearing bore) | 15 mm |
| d2 max (Rod end diameter) | 40 mm |
| h1 (Shank length) | 61 mm |
| L3 min (Thread length) | 30 mm |
| Maintenance Nippel | check |
| Maintenance required | check |
| Norm | DIN ISO 12 240-4-series E, Form F |
| Thread size | M14 |
| Tilting angle | 8 α° ≈ |
| Total height Rod end (L, L2, L4) | 81 |
| Dimensions and weight | |
| Weight | 0.16 Kg |
| Also found under | |
| Rod Ends | Rod Ends with Thread | |
