| Delivery time | Shipped in 5 - 7 - Day(s) |

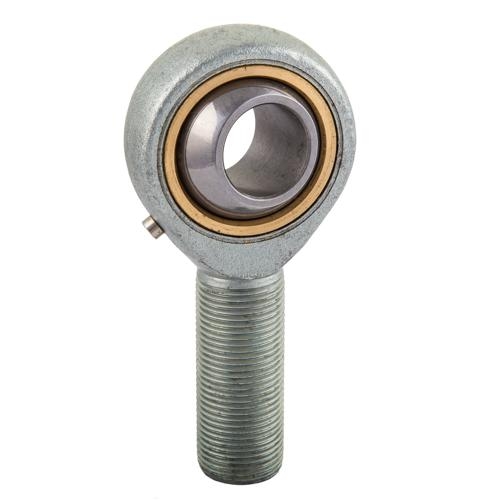

| Article number | SABP22S - GAKR22PB - SAKAC22M |
| EAN | 7440846264267 |
| Color | Metaal |
| Material | ST 52-3 Tinted |
| Model | Stangkop onderhoudsplichtig |
| B (Inner ring width) | 28 mm |
| Basic load ratings dynamic | 38 kN |
| Basic load ratings statisch | 43 kN |
| C1 max (Rod end width) | 20 mm |
| CN Radial internal clearance | 0 - 0,035 mm |
| d (Bearing bore) | 22 mm |
| d2 max (Rod end diameter) | 50 mm |
| h (Shank length) | 84 mm |
| L1 min (Thread length) | 51 mm |
| Maintenance Nippel | check |
| Maintenance required | check |
| Norm | DIN ISO 12 240-4-series K, Form M |
| Thread size | M22x1,5 |
| Tilting angle | 15 α° ≈ |
| Total height Rod end (L, L2, L4) | 109 |
| Dimensions and weight | |
| Weight | 0.49 Kg |
