| Article number | 56021 |
| EAN | 6096013027015 |
| applicable for | Vettige en olie achtige levensmiddelen |
| Barst pressure | 30 bar |
| Color | Blue |
| Color | Wit |
| Diameter Hose | 63mm |
| Dimensions | 1m |
| Inner diameter | 63.5 mm |
| Inner surface | NBR |
| Insert | Sterke synthetische textiel inlagen en stalen spiraal |
| Koppelmaat Zuivelkoppeling | DN63 |
| Length | 1m |
| Minimum bend radius | 63.5 mm |
| Model | Levensmiddelenslang (Zuig/Pers) |
| Model 2 | Compleet geassembleerde slang |
| Norm | FDA, 1935/2004/CE, 1907/2006CE (REACH), 3A Sanitary Standard Class II |
| Outer diameter | 76.5 mm |
| Outer surface | EPDM |
| Side A - Size | DIN 11851 Puntstuk/Wartel DN63 |
| Side B - Size | DIN 11851 Puntstuk/Wartel DN63 |
| Size | DN65 |
| Temperatur range | -20°C/+90°C (+130° MAX. 30 MIN) |
| Wall Thickness | 6.5 mm |
| Work pressure | 10 bar |
| Also found under | |
| Custom Made Hoses | |

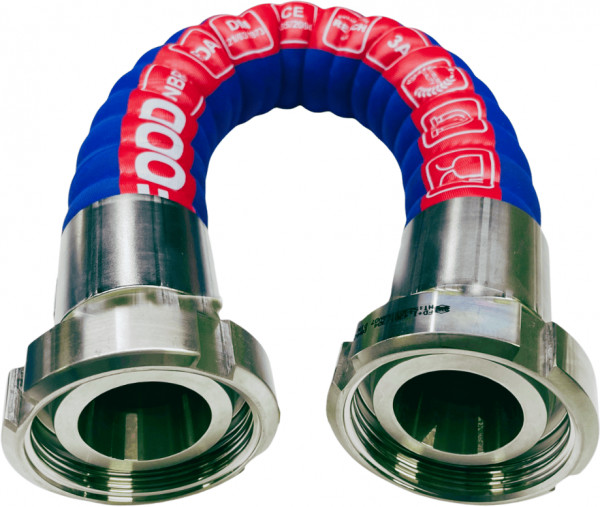

The dairy hose complete is the ideal solution when you need a complete hose for your installation without having to assemble the couplings on it yourself. We have already done this for you. The hose is delivered fully assembled so that it can be put into use immediately. We make the hoses per order, so different lengths and other types of couplings are no problem for us. E - NBR - Very hose we supply is hydrostatically tested. These test reports are available from us on request. We mount stainless steel 316 couplings on this dairy hose according to the DIN 11851 standard. The standard version of this hose has a point piece and swivel on both sides, mounted by means of a press sleeve, for the most hygienic connection. This makes the hose suitable for the most common applications in the food industry such as dairy farms, cheese factories, distilleries, breweries and other food production companies. The dairy hose is extremely suitable for juices and drinks with a high alcohol percentage.
The complete dairy hose meets the following standards:
✔ FDA
✔ 1935/2004/CE
✔ 1907/2006CE (REACH)
✔ 3A Sanitary Standard Class II
