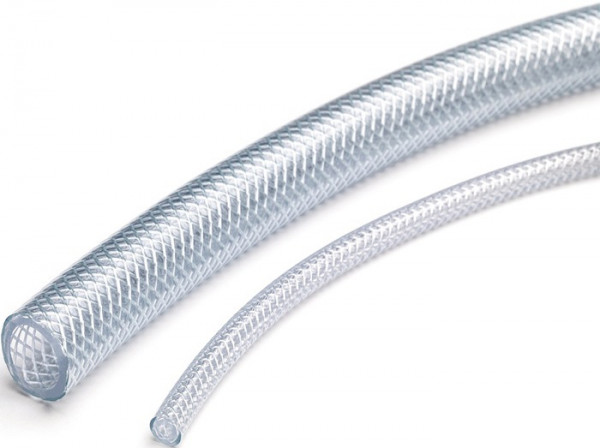

Compressed air hose food - Raufilam-E - 16,2x23,6mm (Roll 100m)

High-quality. Pressure-resistant. Food-grade quality

• Safety and quality with the brand product RAUFILAM-E
• Made of high-quality environmentally friendly and food grade compliant PVC materials
• TÜV-tested, a confirmation of the quality standards from an independent authority
• High transparency for an excellent visual inspection of the conveying process
• The excellent flexibility helps the handling and use
• High resistance against chemicals (see material data sheet RAU-PVC AV0010)
• Abrasion-resistant due to the thick-walled design
• High reinforcement density for pressure-resistant quality
• Temperature resistance –10 °C up to +60 °C
• Phthalate-free

Application Pressure hose to transport water, fruit juices, mineral water, alcoholic beverages up to 20 % alcohol, grease-free liquids, chemical substances (as per material data sheet AV0010)

Use:

• Machine construction -
• Automotive industry -
• Building industry -
• Chemical industry -
• Compressed air industry -
• Beverage industry -
• Laboratory technology

Food law stipulations: -

• Declaration of no objection to 21 CFR FDA §170 – §199 (application temperature max. 40 °C with aqueous, acidic or alcoholic foodstuffs as per American categories (§175.300) for foodstuffs I, II, IV-B, VI up to 10% alcohol) -
• Conformity declaration according to regulation (EC) no. 1935/2004 and regulation (EU) no. 10/2011 for grease-free, solid, aqueous, acidic or alcoholic foodstuffs up to max. 20% alcohol at max. 40 °C (foodstuff categories A,B and C); unsuitable for foodstuffs containing grease -
• Drinking water conformity tested according to the KTW test guidelines of the Environmental Agency (UBA), inspection certificate to KTW C for cold water (23 °C) and warm water (60 °C) is available from DN 4 dimension

Other conformities:

• RoHS 2011/65/EU -
• REACH regulation (EC) no. 1907/2006 (no SVHC) -
• End-of-life vehicle directive 2000/53/EC and 2002/525/EC -
• RoHS electrical and electronic equipment directive 2011/65/EU as well as 2003/11/EC -
• WEEE waste electrical and electronic equipment directive 2012/19/EU
