| Delivery time | Shipped in 3 - 6 - Day(s) |
| In stock | Yes, 541 pcs |
| Article number | 31037 |
| EAN | 9503619715217 |
| Color | Black |
| Dimensions | 78 x 60 x 6,4 (DN63) |
| Koppelmaat | 2½" (DN65) |
| Material | Kunststof |
| Material | NBR |
| MIL-spec | MIL A-A-59326A |
| Norm | EN 14420-7 DIN |
| Size | 2½" (DN65) |
| Temperatur range | -30°C/+80°C |
| Type | Camlock Afdichtring |
| Inner diameter | 60mm |
| Outer diameter | 78 |
| Dimensions and weight | |
| Length/depth | 7,8 cm |
| Width | 6 cm |
| Height | 0,7 cm |
| Weight | 0.01 Kg |
| Dimension | 7,8 x 6 x 0,7 cm ( L x B x H) |
| Packaging dimensions | |
| Length | 7,8 cm |
| Width | 6 cm |
| Height | 0,7 cm |
| Weight | 0 kg |
| Also found under | |
| Camlock Couplings | |

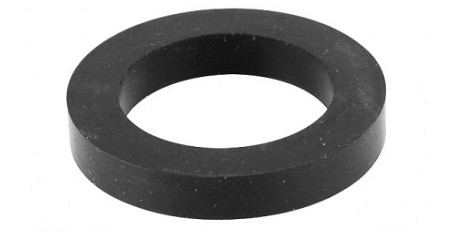

This Camlock gasket is intended for all female Camlock couplings with the coupling size 2-1/2". The Kamlock Seal is made out of NBR. The Camlock coupling gaskets are easy to replace. Simply pop the old seal out of the recess in the camlock coupling and replace it with the new one Camlock Afdichtring - NBR - 78 x 60 x 6,4mm (DN63) - 2-1/2". Pay attention to the chemical resistance of the sealing ring. The sealing ring can be used for all Camlock couplings. If you need a camlock gasket and Kamlock Sealing, you can find it here. This Specific Cam & Groove sealring has dimensions of 78 x 60 x 6,4 (DN63).
